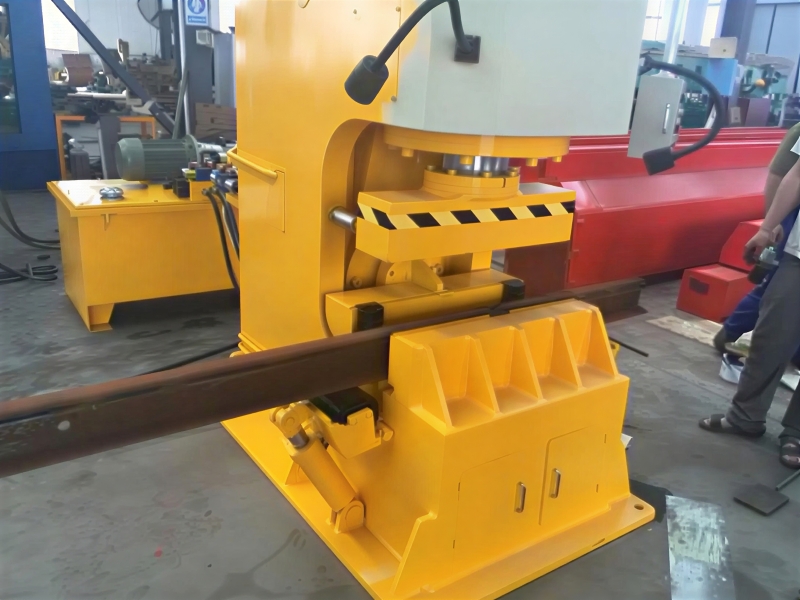

This machine is PLC control, full hydraulic, open rail bidirectional straightening machine. This machine mainly provides a variety of rail straightening or bending use, but also provides a variety of steel straightening. It can straighten rails of not more than 95Kg / M from both vertical and horizontal directions. This equipment is reliable in work, stable in performance, compared with the original electromechanical control system, the use and maintenance is convenient and reliable, with a compact structure, small volume, clear line of sight and other characteristics. This function works normally between 0℃ and 40℃. This equipment includes regulator, pump station, control box, console, random tools and random accessories.
Technical Parameters:
Parameter | Unit | Value |
|---|---|---|
Host Machine (L×W×H) | mm | 1700 × 1720 × 2320 |
Pump Station (L×W×H) | mm | 1220 × 360 × 1910 |
Control Box (L×W×H) | mm | 435 × 200 × 600 |
Control Table (L×W×H) | mm | 330 × 330 × 900–1200 |
Rail Size | kg | 38–65 |
Vertical Straightening Pressure (Maximum) | t | 320 |
Lateral Straightening Pressure (Maximum) | t | 180 |
Lateral Straightening Distance | mm | 160 |
Horizontal Net Fixed Dimension | mm | 300 |
Vertical Adjustment Distance | mm | 258 |
Vertical Net Fixed Dimension | mm | 360 |
