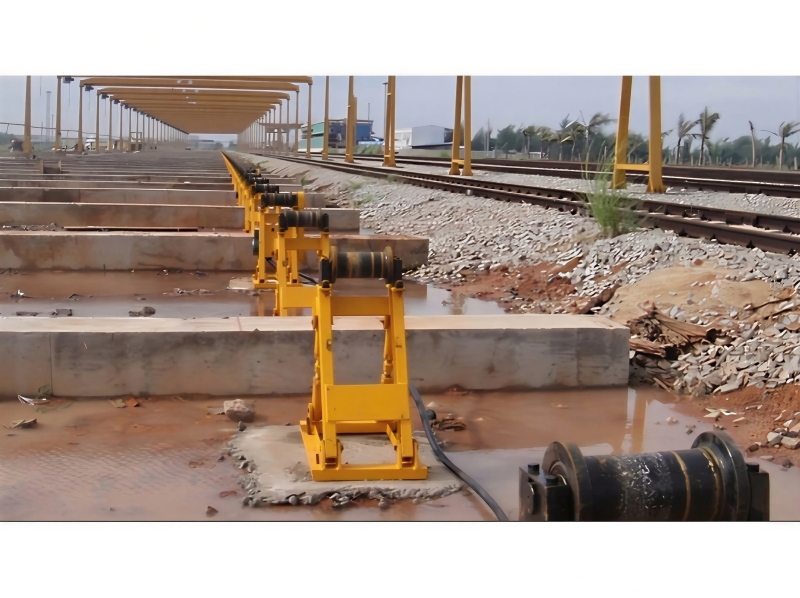

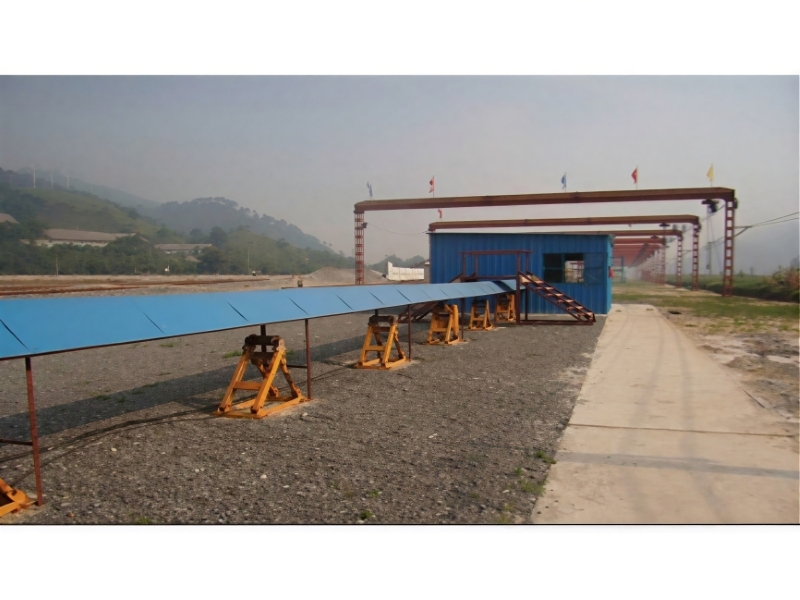

The rail conveying support is the rail transportation equipment with welding rail line, which is divided into active bracket and driven bracket. Before the welding zone, the bracket is separated by two driven brackets with one active bracket to the flaw detection inspection station, and the rail zone is arranged by one active bracket with three driven brackets. The active bracket is similar to the driven bracket, the difference is that the active bracket has a motor drive roller to drive the rail forward.
Technical Parameters:
Parameter | Unit | Value |
|---|---|---|
Host Machine (L×W×H) | mm | 1700 × 1720 × 2320 |
Pump Station (L×W×H) | mm | 1220 × 360 × 1910 |
Control Box (L×W×H) | mm | 435 × 200 × 600 |
Control Table (L×W×H) | mm | 330 × 330 × 900–1200 |
Vertical Straightening Pressure (Maximum) | t | 320 |
Lateral Straightening Pressure (Maximum) | t | 180 |
Lateral Straightening Distance | mm | 160 |
Horizontal Net Fixed Dimension | mm | 300 |
Vertical Adjustment Distance | mm | 258 |
Vertical Net Fixed Dimension | mm | 360 |
