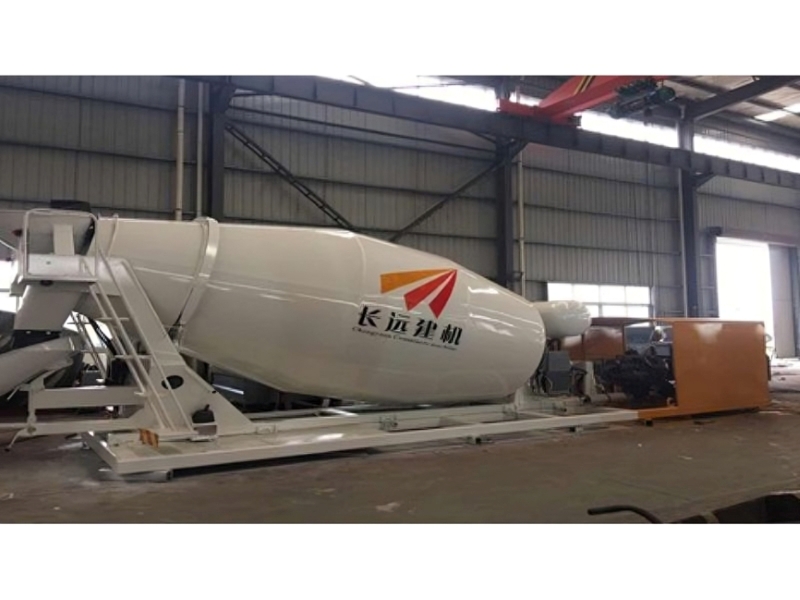

A Mobile conveying mixer (hereinafter referred to as a mixer) is an equipment installed on a rail flat truck for the pouring of ditches on both sides of the line. It is mainly composed of two major assemblies: the base and the upper assembly part. The upper part is composed of mixing drum, inlet and outlet device, control system, hydraulic system, power system, electrical system, water supply system, escalator assembly and fixing device, lifting device, safety device, noise reduction device, etc.(High construction environment requirements and need to provide safe double power source of customers, our company provides low noise box generator set and 45KW motor combination of power configuration, using soft starter control, can ensure the site construction environment and when the car with diesel engine failure using external power emergency operation, and optional remote control for remote control.
Technical Parameters:
Parameter | Unit | Value |
|---|---|---|
Rated Volume | m³ | 10 |
Feeding Speed | m³/min | 3.2 |
Feed Supply Speed | m³/min | 2.0 |
Skew Angle | ° | 12 |
Cleaning Method | Water Pump And Water Supply | |
Engine | Diesel Engine | |
Power | hp | 129 |
DC Voltage | V | 24 |
No-Load Widget | t | 10 |
Drive Form | Direct-Drive Hydraulic Pump | |
Overall Dimension | m | 9.7 × 2.7 × 3.0 |
Fixed Position | Rail Flat Plate Car | |
Fixed Method | Bolted Connection | |
