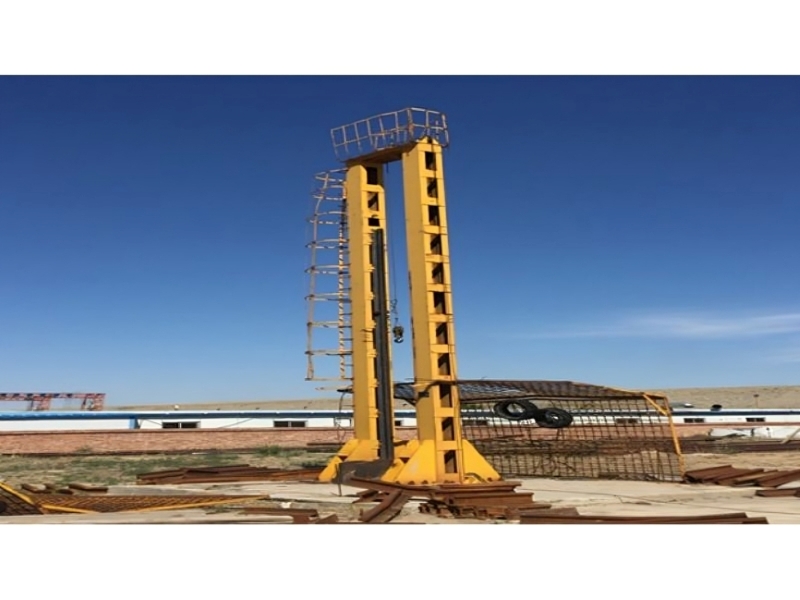

This drop hammer machine is suitable for the drop test of 43 kg/m ~ 75 kg/m hot rolled rail. The hammer machine is mainly composed of the following parts: hoist, hammer head, pier, bracket and hammer machine foundation.
Technical Parameters:
Parameter | Unit | Value |
|---|---|---|
Maximum Drop Hammer Height | mm | 5200 |
Hammer Head Lifting Speed | m/min | 15 |
Hammer Weight | t | 1 |
Hoch Rated Tension | kN | 10 |
Rope Capacity | m | 100 |
Rope Speed | m/min | 30 |
Power | kW | 5.5 |
Rope Diameter | mm | 12 |
Maximum Height Of The Hammer Machine | mm | 9802 |
