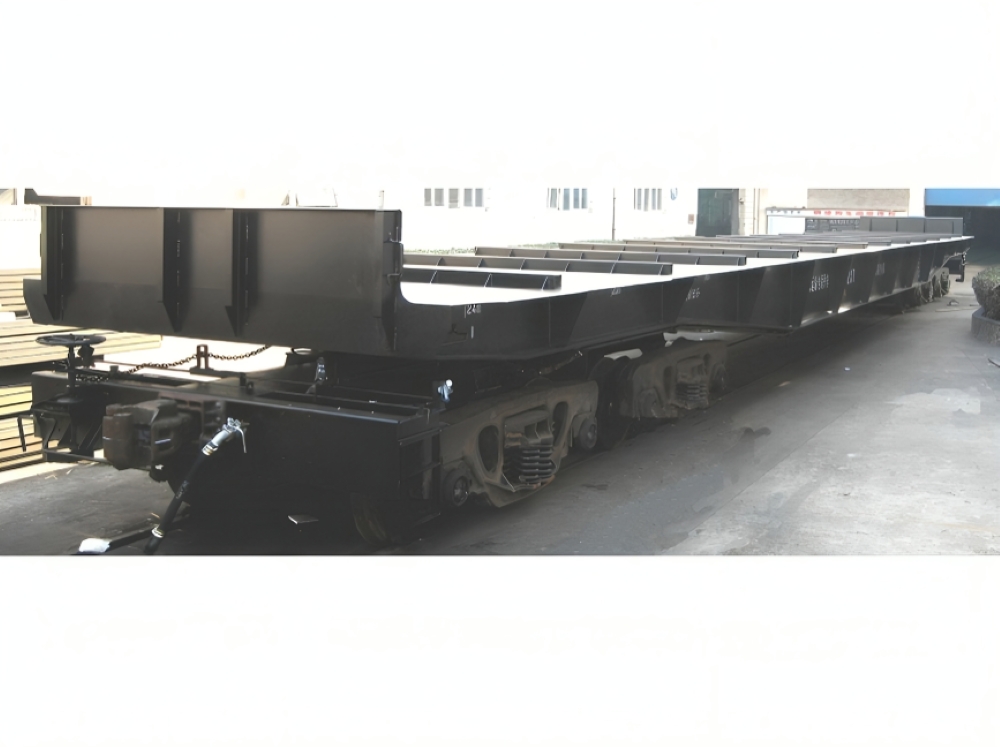

230t special flat wagon is designed and used to transport heavy duty machinery on enterprise railway track which curve radius is smaller , the allowable axle load is bigger and the length of railway is shorter due to the limited production space or limited railway construction clearance.
Technical Parameters:
Parameter | Unit | Value |
|---|---|---|
Gauge | mm | 1435 |
Loading Capacity (uniformly distributed) | t | 230 |
Tare Weight | t | 49.5 |
Axle Load | t | 35 |
Business Speed | km/h | 50 |
Minimum Radius of Curvature Negotiated | m | 135 |
