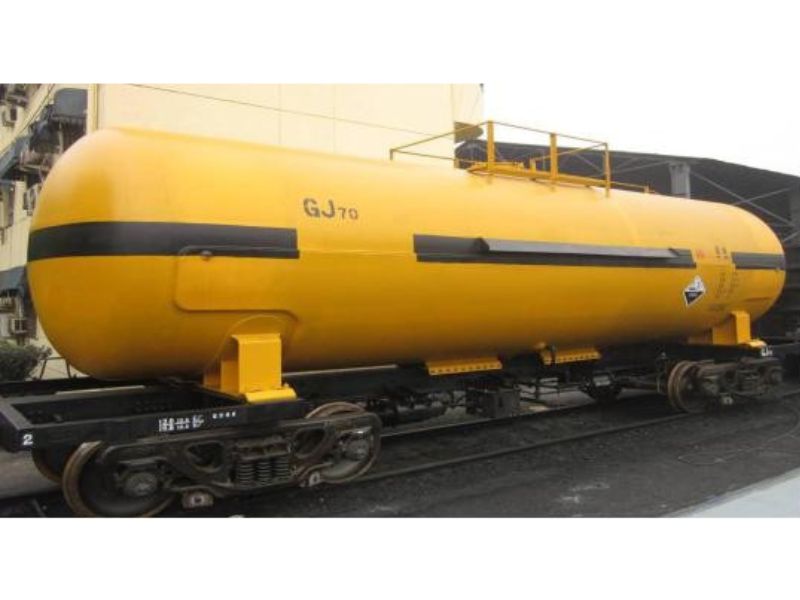

GJ70 liquid caustic soda tank wagon is used to transport liquid caustic soda series products with 30% or more concentration on standard gauge railway. It can be loaded and unloaded from the top of the tank wagon.
Technical Parameters:
Parameter | Unit | Value |
|---|---|---|
Gauge | mm | 1435 |
Loading Capacity | t | 70 |
Tare Weight | t | 23.8 |
Axle Load | t | 23 |
Volume | m³ | 54.3 |
Business Speed | km/h | 120 |
Minimum Radius of Curvature Negotiated | mm | 145 |
