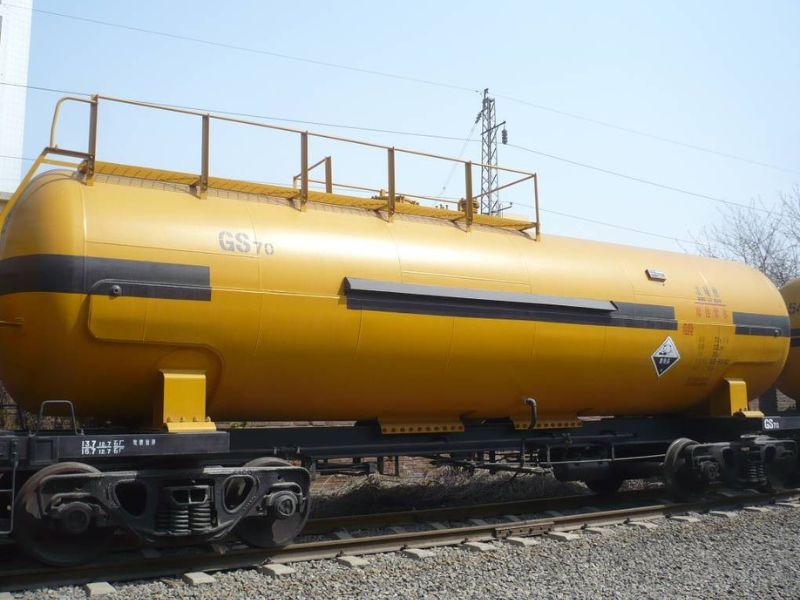

GS70 concentrated sulfuric acid tank wagon is used to transport high concentrated sulfuric acid (with concentration more than 92.5%) on standard gauge railway. The sulfuric acid can be loaded and unloaded from the top of the tank wagon.
Technical Parameters:
Parameter | Unit | Value |
|---|---|---|
Gauge | mm | 1435 |
Loading Capacity | t | 70 |
Tare Weight | t | 23 |
Axle Load | t | 23 |
Total Volume | m³ | 39.2 |
Effective Volume | m³ | 38 |
Business Speed | km/h | 120 |
Minimum Radius of Curvature Negotiated | mm | 145 |
