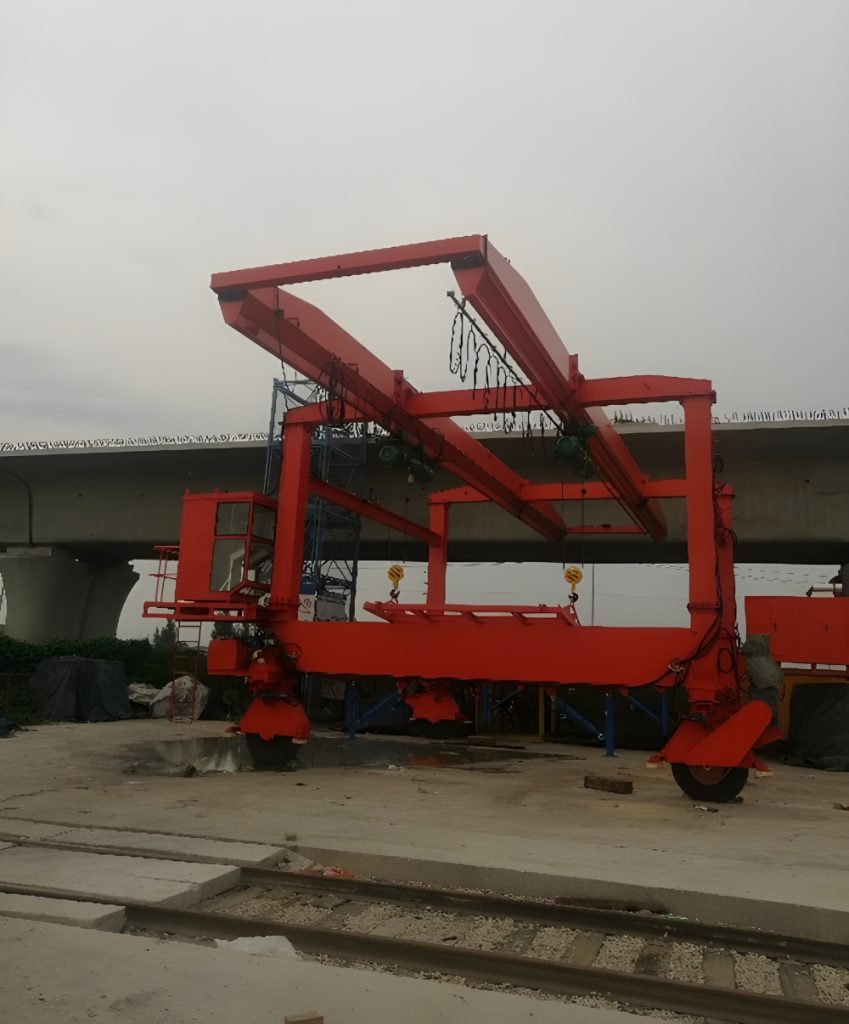

PB100C-paving gantry crane is designed and manufactured according to GB / T14406-93 General Portal Crane, GB5905-86 Lifting Test Specification and Procedures and relevant standards. It is mainly composed of steel structure, active walking mechanism, driven walking mechanism, 5t electric hoist, power system, electrical control system and transverse moving mechanism. This gantry crane is suitable for new I type, type or type high-speed rail.
Technical Parameters:
- Total width of the laying machine: 19,600 m m
- Total length of the laying machine (track direction): 12770mm
- The maximum height of the laying machine: 7,025 m m
- Spacing between front and rear walking mechanism: 7500 mm
- Total width of the laying machine: 19,600 m m
- Total length of the laying machine (track direction): 12770mm
- The maximum height of the laying machine: 7,025 m m
- Spacing between front and rear walking mechanism: 7500 mm
- Process of Type: laying the I-Type rail board, laying the II-Type rail board and laying the III-Type rail board are laid
- Minimum operation radius is 2,000 m
- Engine model number: KLG224-60
- Engine power: 60kW (1500rpm)
- Generator capacity: 43.2kVA
- Power supply voltage: AC380V
- frequency converter power: 112 kVA
- Full-load climbing capacity: 33%
- Maximum lifting height: 30m
- Headroom height: 4.2m
- Self-propelled speed: 8~40m / min
- Maximum lifting capacity: 2X5t
- The lifting speed: 0.5~8m / min
- Running speed: 0.5 to 20 m / min
- Operating environment temperature: -20℃ ~ + 50℃
- The lighting conditions: meet the night operation conditions
- The operation altitude: 3,000 m
- Wind speed during operation: level 8
- Non-operating wind speed：level 12
